SC 60H

Introduction

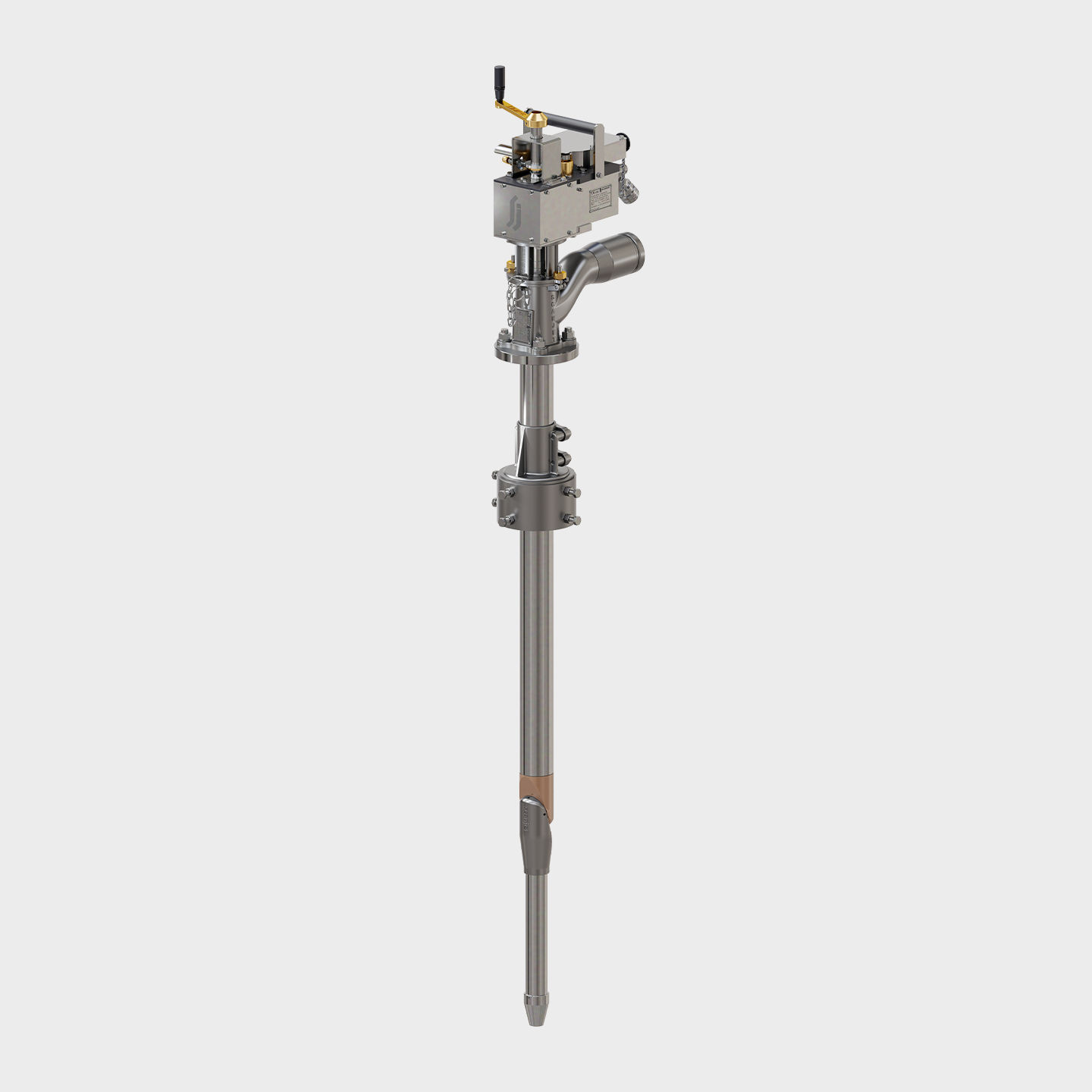

The Scanjet SC 60H is an advanced hydraulic operated tank cleaning machine designed for crude oil storage tanks with limited access, providing a no-man entry solution. The slim design enables the SC 60H to fit through support leg openings on floating-roof tanks or similar access points. If no access points are available, new holes can easily be made with the Scanjet SCANCUT tool, which safely cuts a hole in the tank top. The SCANCUT tool and SC 60H are certified to be operated in ATEX zone 0.

Application
The SC 60H has targeted sector cleaning capabilities, making sure of efficient cleaning in hard to clean areas, such as the tank bottom where sludge build-up over time.

The SC 60H is excellent in handling solids found in crude oil, including larger particles, making it highly effective for challenging tank cleaning tasks where reliability and robustness are key element for a successful cleaning.

Application
The SC 60H has targeted sector cleaning capabilities, making sure of efficient cleaning in hard to clean areas, such as the tank bottom where sludge build-up over time.The SC 60H is excellent in handling solids found in crude oil, including larger particles, making it highly effective for challenging tank cleaning tasks where reliability and robustness are key element for a successful cleaning.

Benefits
• Capable of handling large solids
• Durable industrial design
• Slim design for easy installation through existing support legs
• ATEX zone 0
• Targeted sector cleaning
• No-man entry = safe working environment
• Nozzle orientation sensors

Accessories
The SC 60H comes with a wide range of accessories:
• Flexible adapter for support leg installation

  • Sector cleaning.
  • Support leg entry.
  • Highly durable.
  • Pneumatic drive.
  • High solids loading.
  • Stainless steel construction.
  • Pitch control.
  • Custom lengths.
  • Certified for operation in ATEX “Zone 0” (Zero) environments.
  • Floating roof crude oil storage tanks.
  • Fixed roof crude oil storage tanks.
  • Large chemical storage tanks.
  • Large silos & dryers.
  • Large reactors.
  • Large Uni-tanks.
Flow See table in Performance data
Inlet pressure 6–12 bar (87–174 psi)
Maximum pressure 14 bar (203 psi)
Maximum pressure (ATEX) 12 bar (174 psi)
Rotation speed 0.5–1.5 rpm
Rotation speed (slow version) 0.25–1 rpm
Min/Max temperature of fluid -20 °C (-4 °F) / 95 °C (203 °F)
Min/Max ambient temperature -20 °C (-4 °F) / 60 °C (140 °F)
Noise level 75 dB(A)
Weight (Machine length, L=1 m) 47 kg (104 lb)
Per additional meter of main pipe 12 kg (26 lb)
Material, Inlet housing/Main pipe Bronze / EN1.4404
Material, Other parts Manufacturer’s standard
Drive type Pneumatic
Operating air pressure 6 bar (87 psi)
Max air pressure 7 bar (102 psi)
Max air pressure (ATEX) 6 bar (87 psi)
Max air consumption 300 l/min (79 USgpm)
Air inlet connection 1/4” BSP, 1/2” BSP
Vertical sector Continuously 0°–140°
Elevation 2.4 ° per rev.
Min/Max air operating temp. -20 °C (-4 °F) / 60 °C (140 °F)
Dimensions L/W/H 283 x 173 x 408 (457) mm 11.2 x 6.8 x 16.1 (18) in
Weight 14 kg (31 lb)
Material (Main covers) Aluminium
Material (Wash unit connection) AISI316L
Material (Other parts) PEEK, PTFE, Ceramic
