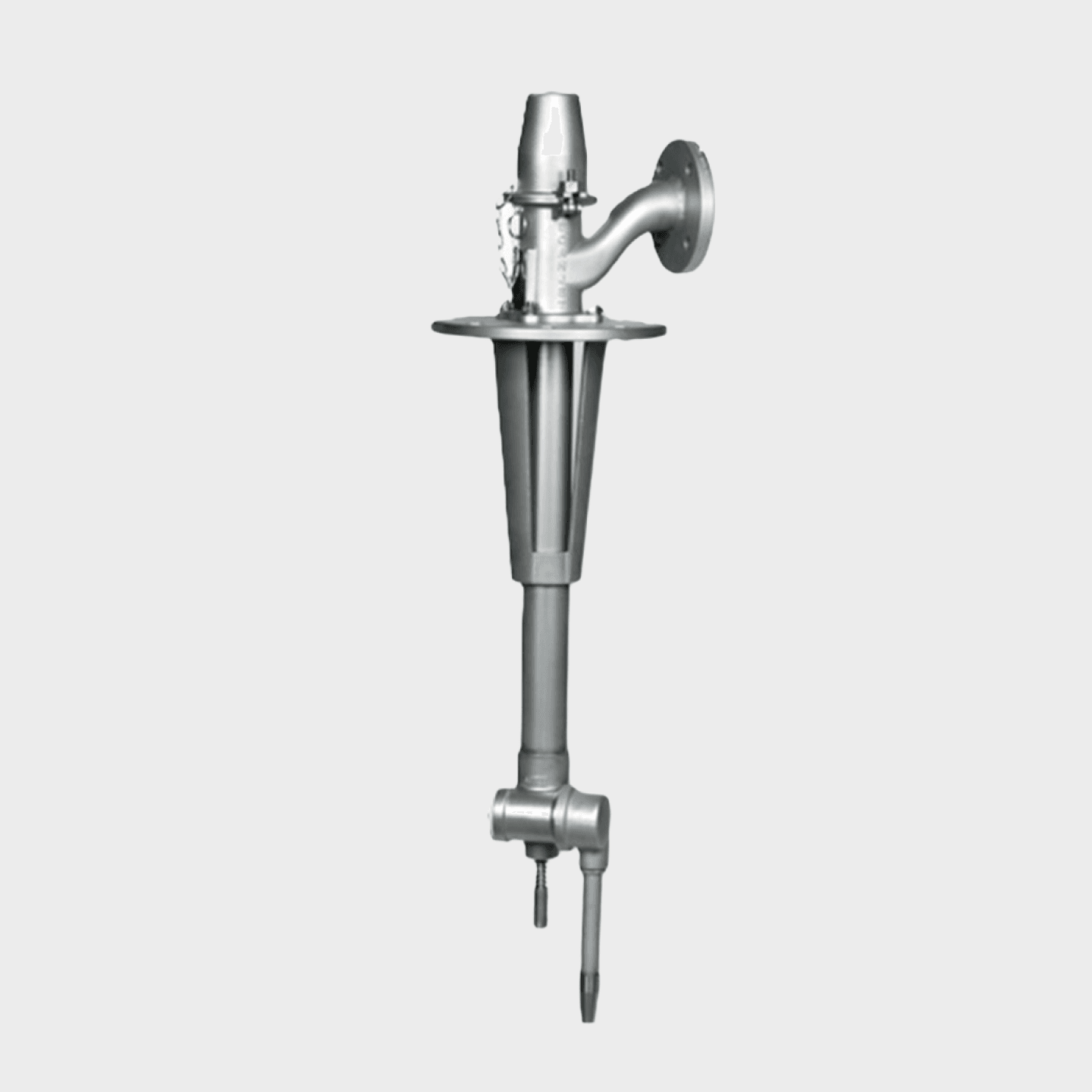

SC 30A

The SC 30A, a specialized single-nozzle marine fuel tank cleaner, is explicitly designed for hazardous ATEX areas. It effectively minimizes time and energy usage while optimizing cleaning with various nozzle levels. Additionally, it holds certifications to ISO 9001, ASME, CE, and ATEX standards, ensuring top-notch quality and compliance.

The SC 30A features two primary components: a tank-installed washing unit and a portable air-driven drive unit like the SC 100, SC 100 PW, or SC 180 for operational flexibility. Users can easily exchange or remove the drive unit without exposing the tank to external atmosphere. Additionally, the SC 30A offers the option of selecting single nozzle levels freely, enabling a customized installation to meet specific needs.

In terms of Quality Control, Compliances & Certifications, you can rest assured that the SC 30A upholds rigorous standards. It is manufactured in accordance with ISO 9001 Quality Standards, and our certificate of conformity and accreditation is available upon request. Furthermore, the SC 30A meets United States ASME standards for construction, as well as European CE and ATEX standards for design, construction, and safety.

  • ATEX.
  • Programmable sector cleaning.
  • Rugged construction.
  • External drive.
  • High jet impact.
  • High capacity.
  • Drive unit can be repaired without exposure to atmosphere.
  • No gearbox inside tank.
  • AISI 316 and PTFE.
  • Chemical carriers.
  • Product carriers.
  • Offshore and supply vessels.
  • Large reactors.
  • River barges.
Flow 5-16 m3/h
Inlet Pressure 3-10 bar
Max Pressure 12 bar
Recommended Pressure 6 bar
Max temperature 95°C
Max ambient temperature 140°C
Weight 5,1 kg
Connections standards See Datasheet
Material AISI 316, PTFE, PEEK
Lubrication Cleaning media
