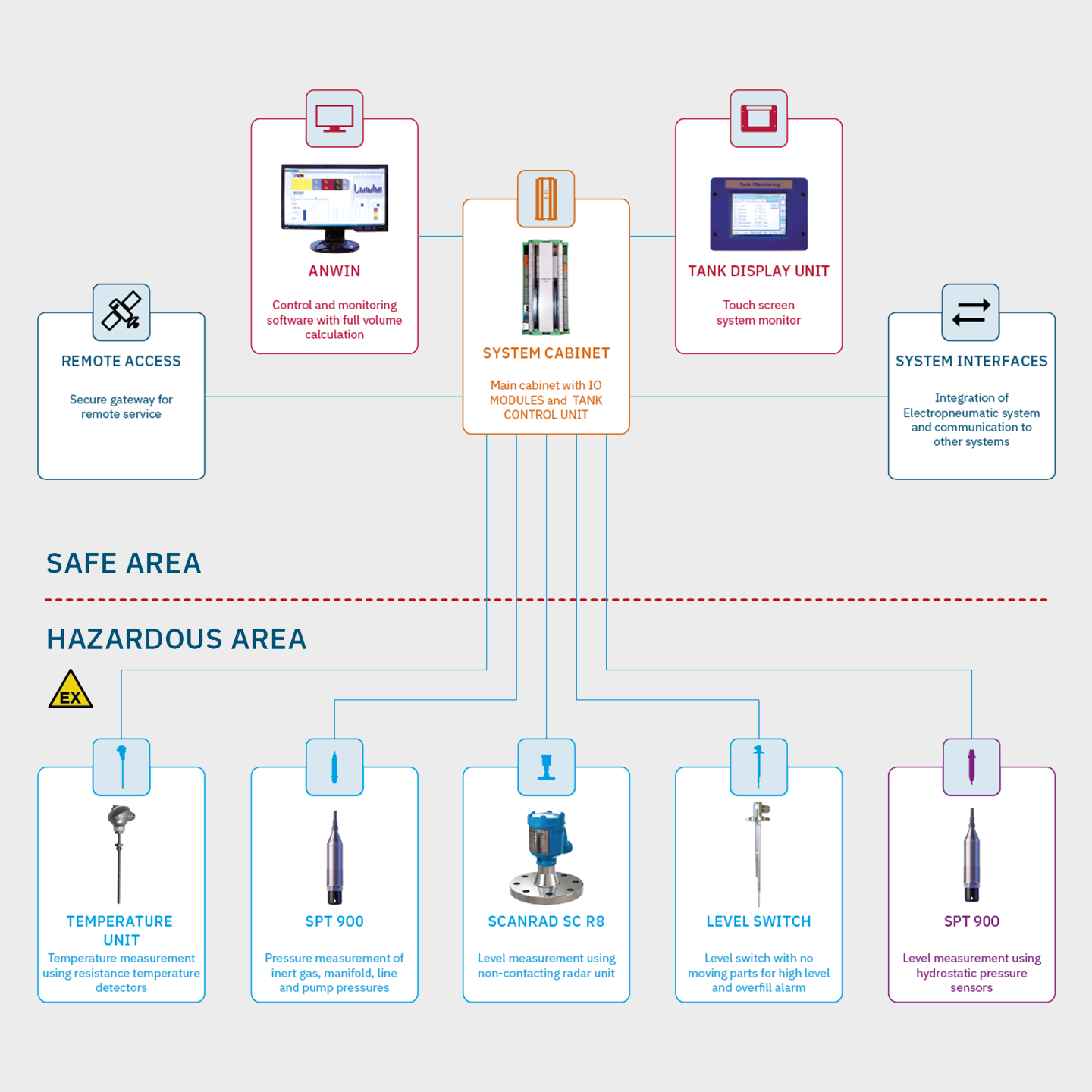

SURVEYOR™ Cargo Level Monitoring is a complete tank measurement automatic level gauging and cargo monitoring system for tankers. The system is one of the most comprehensive and accurate systems available for this specific application.
Together with advanced signal handling and computer technology, the functions included are as follows:

• Level gauging in cargo, slop, ballast, and fuel oil tanks.
• Vapor (inert gas) pressure in cargo and slop tanks.
• Draft measurement.
• Loading computer for intact stability and stress with load planning.
• Print our cargo and transfer reports.
• Serial line interface for communications with other systems available.
• High level and overfill alarm.

As all parts and functions are based on the same sensor technology, the tank monitoring system is very cost-effective and operationally efficient for the users. The modular and compact design makes the SURVEYOR™ Cargo Level an attractive alternative for new building or retrofit installations. Separate ballast gauging systems or complete cargo tank systems are available for installation on board any type of vessel. SURVEYOR™ Cargo Level has been successfully installed on board chemical and oil tankers as well as product and container vessels and is recognized as a cost-effective, reliable, and user-friendly system.

Non-contact Microwave Radar:
One of the few marine microwave ullage gauges featuring power and 4-20 mA signal on a two-core cable, thus providing for simple, fast, and cost-effective installation for both new buildings and retrofit projects. Because of its unique design and technology, there is no need for large and tall adapter trunks to fit radar to the deck. The system provides for automatic trim and list correction and allows exporting of level either at the flotation center of the tank, at the sensor location, or the sounding pipe.
